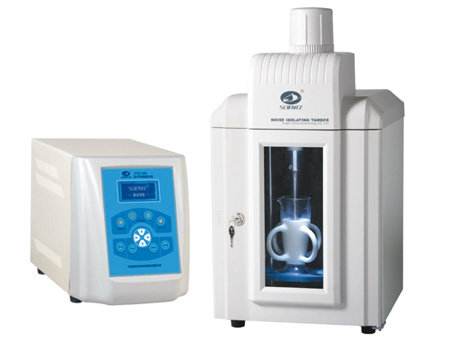

20Khz laboratory Water Treatment ultrasonic sonochemistry equipment
Description:
RPS-Sonics manufactures the most technologically advanced and reliable ultrasonic processors in the industry for applications such as: dispersion of nanoparticles, nanotubes and Graphene; cell lysing and cell disruption; sample prep; ChIP assay; homogenization; extraction; atomization; and more.
Upon irradiation with high intensity sound or ultrasound, acoustic cavitation usually occurs. Cavitation – the formation, growth, and implosive collapse of bubbles irradiated with sound — is the impetus for sonochemistry and sonoluminescence. Bubble collapse in liquids produces enormous amounts of energy from the conversion of kinetic energy of the liquid motion into heating the contents of the bubble. The compression of the bubbles during cavitation is more rapid than thermal transport, which generates a short-lived localized hot-spot.
Probe sonication is significantly more powerful and effective when compared to ultrasonic cleaner baths for nanoparticle applications. A cleaner bath requires hours to accomplish what a probe Sonicator can do in minutes. Sonicators can create a stable dispersion that can remain in suspension for many months as evidenced in this article excerpt:
Dispersions in vials (a) have coagulated CNTs in the body and at the bottom by means of bath sonication for 8 hours, (b) appear free-homogenous with probe sonication for 3 minutes, and (c) keep free-homogenous even after 4 months of sitting at room temperature. The concentration of Multi-Walled Carbon Nanotubes (MWCNTs) is 2500 mg/L and the MWCNTs/SDS ration is 1:10. (d) MWCNTs of (c) was diluted to 25 mg/L with deionized water.
| Item | Parameter |
| Frequency | 20Khz |
| Power | 2000W |
| Capacity | 10L |
| Horn diameter | 16mm |
| Probe dip depth | 80mm |
Applications:
Ultrasonic have extremely capable and versatile, it can safely process a wide range of organic and inorganic materials – from microliters to liters. Typical applications include: sample preparation, dispersion, cell lysing, desegregation, homogenization, particle size reduction, soil testing, transesterification (including biodiesel production), nanotechnology (including nanoparticle and Graphene dispersion), acceleration of chemical reactions, degassing and atomization.
The new digital ultrasonicator is a powerful ultrasound processor for liquid treatments on bench-top and industrial scale. Common applications include homogenization, emulsification, dispersing & particle fine milling, lysis & extraction, dissolving vagy sonochemical reactions such as sono-synthesis and sono-catalysis. Touch display, browser remote control, automatic data recording. High Power and Full Process Control Powerful sonication is the process solution for manifold liquid processing applications, such as emulsifying, dispersing, milling vagy dissolving. The equipment provides intense ultrasound waves to fulfill demanding tasks without problems. To ensure a consistent process quality, not only the power delivered is essential, the control and monitoring of all important process parameters is key. The new generation of hdT ultrasonicators enables the operator to pilot the ultrasonic device via touch display or browser remote control.
Sonochemical effects :
• increase in reaction speed
• increase in reaction output
• more efficient energy usage
• sonochemical methods for switching of reaction pathway
• performance improvement of phase transfer catalysts
• avoidance of phase transfer catalysts
• use of crude or technical reagents
• activation of metals and solids
• increase in the reactivity of reagents or catalysts
• improvement of particle synthesis
• coating of nanoparticles
The range of application of sonochemistry reactor:
• Dispersion
• Cell disruption
• Pharmacy sample prep
• Homogenization
• Emulsification
• Nanoparticle dispersion
• Atomization
• Graphene dispersion
• Biodiesel making;
• Liquidation,
• Crystallization,
• Extraction,
• Wastewater treatment,
• Accelerated reaction,
• kill microbes(cell disruption),
• Degradation of toxic organic pollutants
• antiscaling descaling in sewage treatment field
