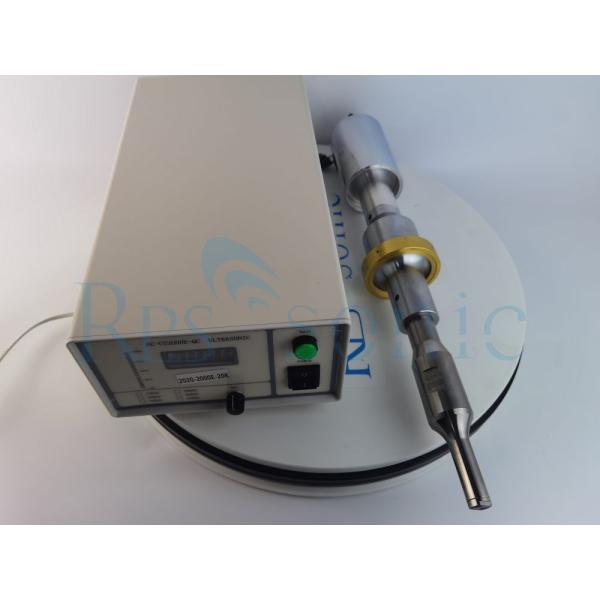

20khz 1000W 2L Ultrasonic Homogenizer For Ultrasonic Graphene Dispersion
20khz 1000W Ultrasonic Homogenizer for Ultrasonic Graphene Dispersion
| Model | SONOL20-500 | SONOL20-1000 | SONO20-1000 | SONO20-2000 | SONO20-3000 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 500 W | 1000 W | 1000 W | 2000W | 3000W |
| Voltage | 220V | 220V | 220V | 220V | 220V |
| Temperature | 300 ºC | 300 ºC | 300 ºC | 300ºC | 300ºC |
| Pressure | Normal | Normal | Normal | 35 MPa | 35 MPa |
| Intensity of sound | >10 W/cm² | >10 W/cm² | >10 W/cm² | >30 W/cm² | >60 W/cm² |
| Max capacity | > 500ml/Min | > 2 L/Min | > 5L/Min | > 15L/Min | > 100L/Min |
| Material of probe | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
| Model | SONOL20-1000 |
| Frequency | 20khz |
| Power | 1000W |
| Voltage | 220V |
| Temperature | 300 ºC |
| Intensity of sound | >10 W/cm² |
| Max capacity | > 2 L/Min |
| Material of probe | Titanium Alloy |
| Generator | Digital generator |
Description:
The ultrasonic homogenization treatment device utilizes the local high temperature, high pressure, strong shock wave and micro jet generated by the cavitation effect of the ultrasonic wave to promote the strong interaction between the particles, increase the chemical reaction rate, shorten the reaction time, and improve the reaction selectivity.Moreover, it can excite chemical reactions that cannot occur in the absence of ultrasonic waves.
Application Field:
Ultrasonic treatment of chemical extraction, biodiesel production, organic synthesis, treatment of microorganisms, degradation of toxic organic pollutants, chemical reaction rate and yield, catalytic efficiency of catalysts, biodegradation treatment, ultrasonic anti-scaling, biological cell comminution, dispersion and coagulation A local small environment that is very beneficial to the reaction process can greatly increase the reaction rate and reduce the reaction conditions.
Performance advantages:
1. Adopt intelligent control technology to achieve stable amplitude output of ultrasonic amplitude, ensuring uniform and stable cavitation effect.
2. Adopt automatic frequency matching mode to ensure that the ultrasonic transducer works at the best time every time.
3. The system has two working modes, continuous and intermittent.
4. The system can set the ultrasonic working time independently and facilitate the experimental analysis.
5. The system uses a focused design,that have high energy density, which significantly improves the efficiency of the experiment.
6. The system has a variety of protection mechanisms to ensure stable operation and long life.
7. The system uses a 5V fan,that have high safety factor.
